- Magnification: NONE
- Model Number: X7CAM4K
- Product Type: Microscope Cameras
- Brand Name: WintopScope
- Origin: Mainland China
- Certification: CE
X7CAM4K Series Camera Application
The X7CAM4K series camera is intended for acquisition of digital images from stereo microscopes, biological microscopes, or online interactive teaching. The basic characteristic is listed as below:
-
Sony STARVIS 2 back-illuminated CMOS sensor
-
4K HDMI/ NETWORK/ USB multiple video synchronous outputs
-
4K/1080P auto switching according to monitor resolution
-
High frame rate output, supporting up to 4K 75fps
-
Support 4K 60fps low delay HDMI output mode, with an average delay of 40ms
-
SD card/USB flash drive for captured image and video storage, support local preview and playback
-
New browsing function, providing rich file operation functions, image to image comparison, image to real-time video comparison, and other functions
-
Excellent ISP with local tone mapping and 3D denoising
-
Provide two sets of default ISP parameters for biological microscope and stereo microscope
-
Embedded XCamView for the control of the camera and image processing, supporting automatic edge finding and measurement functions
-
ToupView/ToupLite software for PC
-
iOS/Android applications for smart phones or tablets
X7CAM4K Series Camera Datasheet and Functions
|
Order Code |
Sensor & Size(mm) |
Pixel(μm) |
G Sensitivity Dark Signal |
Sensor Output (FPS/Resolution) |
Binning |
Exposure(ms) |
|
Sony IMX678(C) |
2.0x2.0 |
1364mv with 1/30s |
72@3840*2160 |
1x1 |
0.019~1000 |
|
|
X7CAM4K8MPB |
Sony IMX585(C) |
2.9x2.9 |
1028mv with 1/30s |
75@3840*2160 |
1x1 |
0.048~1000 |
|
Camera Model |
Video Saving(FPS/Resolution) |
HDMI2.0(FPS/Resolution) |
USB3.0(FPS/Resolution) |
NETWORK(FPS/Resolution) |
|
X7CAM4K8MPA |
72@3840*2160 |
60@3840*2160 60@1920*1080 |
30@3840*2160 45@2688*1512 60@1920*1080 |
30@3840*2160 60@1920*1080 72@1280*720 |
|
X7CAM4K8MPB |
75@3840*2160 |
60@3840*2160 60@1920*1080 |
30@3840*2160 45@2688*1512 60@1920*1080 |
30@3840*2160 60@1920*1080 75@1280*720 |

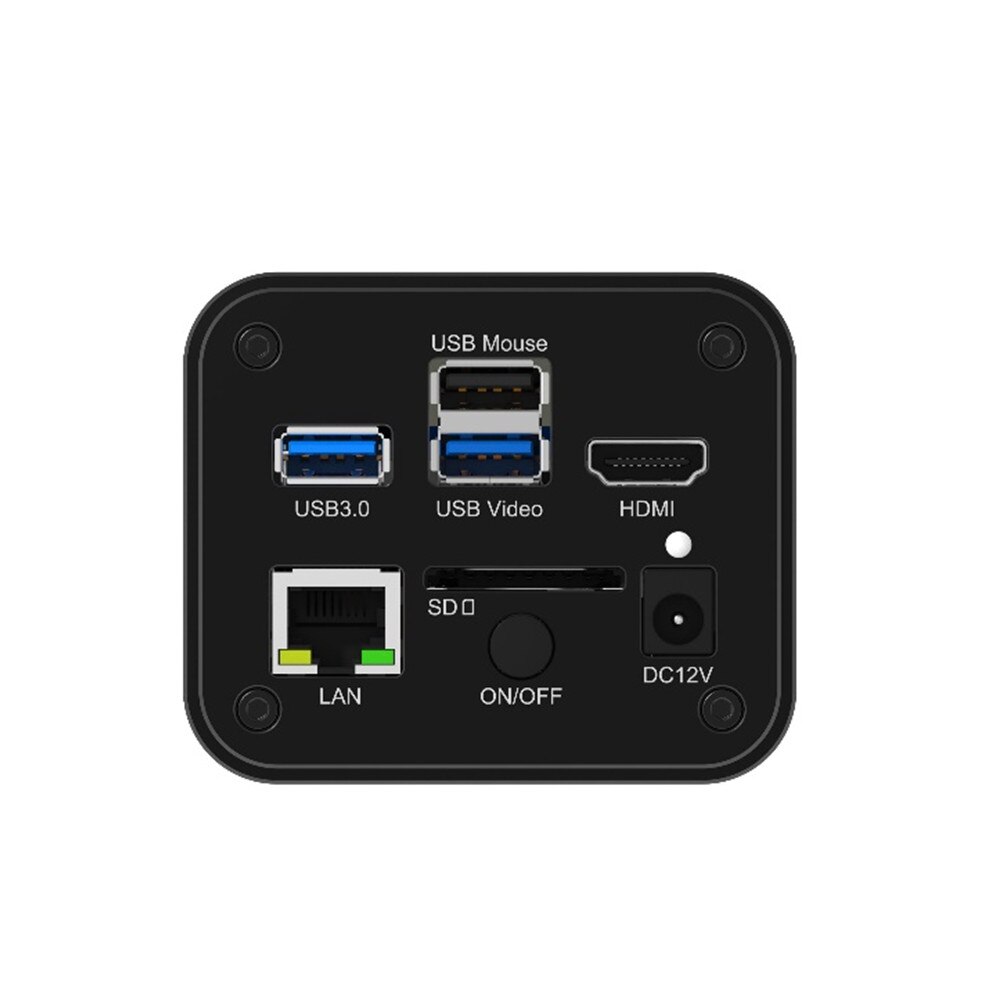

Available Ports on the Back Panel of the Camera Body
|
Interface or Button |
Function Description |
|
|
USB Mouse |
Connect USB mouse for easy operation with embedded XCamViewsoftware |
|
|
USB3.0 |
Connect USB flash drive to save pictures and videos Connect 5G WiFi module to transfer video wirelessly in real time |
|
|
USB Video |
Connect PC or other host device to realize video image transmission |
|
|
HDMI |
Comply with HDMI2.0 standard. 4K/1080P format video output and supporting automatic switch between 4K and 1080P format according to the connected monitors |
|
|
LAN |
LAN port to connect router and switch to transfer video |
|
|
SD |
Comply with SDIO3.0 standard and SD card could be inserted for video and images saving |
|
|
ON/OFF |
Power switch |
|
|
LED |
LED status indicator |
|
|
DC12V |
Power adapter connection (12V/1A) |
|
|
Video Output Interface |
Function Description |
|
|
HDMI Interface |
Comply with HDMI2.0 standard;60fps@4K or 60fps@1080P |
|
|
LAN Interface |
support real time resolution switching(4K/1080P/720P) H264 encoded video DHCP configuration or manual configuration Unicast/multicastconfiguration |
|
|
WiFi Interface |
Connecting 5G WiFi adapter (USB3.0 slot) in AP/STA mode |
|
|
USB Video Interface |
Connecting USB Video port of PC for video transfer H264/MJPEG format video |
|
|
Other Function |
Function Description |
|
|
Video Saving |
Video format：8M(3840*2160) H264/H265encoded MP4file Video saving frame rate:72fps(X7CAM4K8MPA); 75fps(X7CAM4K8MPB); 60fps in low delay mode |
|
|
Image Capture |
8M (3840*2160)JPEG/TIFFimage in SD card or USB flash drive(Default SD card priority, priority can be modified in settings) |
|
|
Measurement Saving |
Measurement information saved in different layer with image content Measurement information is saved together with image content in burn in mode |
|
|
ISP |
Exposure(Automatic /Manual Exposure)/ Gain，White Balance(Manual /Automatic /ROIMode)，Sharpening，3D Denoise，Saturation Adjustment，Contrast Adjustment，Brightness Adjustment，Gamma Adjustment，Color to Gray，50HZ/60HZ Anti-flicker Function |
|
|
Image Operation |
Zoom In/Zoom Out(Up to 10X), Mirror/Flip, Freeze, Cross Line, Browser(including Picture Browsing ,Video Playback , Video Compare , Picture Compare), Measurement Function |
|
|
Embedded RTC(Optional) |
To support accurate time on board |
|
|
Restore Factory Settings |
Restore camera parameters to its factory status |
|
|
Multiple Language Support |
English / Simplified Chinese / Traditional Chinese / Korean / Thailand / French / German /Spanish / Japanese / Italian / Russian / Dutch / Portuguese |
|
|
Software Environment under Network/USBVideo Output |
||
|
White Balance |
Auto White Balance |
|
|
Color Technique |
Ultra-Fine Color Engine |
|
|
Capture/Control SDK |
Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc) |
|
|
Recording System |
Still Picture or Movie |
|
|
Operating System |
Microsoft® Windows®XP/Vista / 7 / 8/ 8.1 /10(32 & 64 bit) OSx(MacOS X) Linux |
|
|
PCRequirements |
CPU: Equal to Intel Core2 2.8GHz or Higher |
|
|
Memory: 4GB or More |
||
|
Ethernet Port: RJ45 Ethernet Port |
||
|
Display:19” or Larger |
||
|
CD-ROM |
||
|
Operating Environment |
||
|
Operating Temperature (in Centidegree) |
-10°~50° |
|
|
Storage Temperature (in Centidegree) |
-20°~ 60° |
|
|
Operating Humidity |
30~80%RH |
|
|
Storage Humidity |
10~60%RH |
|
|
Power Supply |
DC 12V/1A Adapter |
|
Dimension of X7CAM4K Series Camera
Dimension of X7CAM4K Series
X7CAM4K Series Camera Packing Information
|
Standard Packing List |
|||
|
A |
Gift box : L:25.5cm W:17.0cm H:9.0cm (1pcs, 1.7Kg/ box) |
||
|
B |
X7CAM4K Camera(One of the two different shapes) |
||
|
C |
Power Adapter: Input: AC 100~240V 50Hz/60Hz, Output: DC 12V 1A American standard: Model: POWER-U-12V1A(MSA-C1000IC12.0-12W-US): UL/CE/FCC European standard: Model: POWER-E-12V1A(MSA-C10001C12.0-12W-DE): UL/CE/FCC EMI standard: FCC Part 15 Subpart B EMS standard: EN61000-4-2,3,4,5,6 |
||
|
D |
USB Mouse |
||
|
E |
HDMI Cable |
||
|
F |
USB3.0 A male to A male gold-plated connectors cable /2.0m |
||
|
G |
CD (Driver & utilities software, Ø12cm) |
||
|
Optional Accessory |
|||
|
H |
SD Card(16G or above; Speed: class 10) |
||
|
I |
USB flash drive |
||
|
J |
Adjustable lens adapter |
C-Mount to Dia.23.2mm Eyepiece Tube |
108001/AMA037 |
|
K |
Fixed lens adapter |
C-Mount to Dia.23.2mm Eyepiece Tube |
108005/FMA037 |
|
Note: For Land Moptional items, please specify your camera type(C-mount, microscope camera or telescope camera), engineer will help you to determine the right microscope or telescope camera adapter for your application; |
|||
|
L |
108015(Dia.23.2mm to 30.0mm Ring)/Adapter rings for 30mm eyepiece tube |
||
|
M |
108016(Dia.23.2mm to 30.5mm Ring)/ Adapter rings for 30.5mm eyepiece tube |
||
|
N |
Calibration kit |
106011/TS-M1(X=0.01mm/100Div.); |
|
|
O |
USB WiFi adapter |
||
|
P |
Ethernet cable |
||
NOTE: If you need optional accessories, pls feel free to contact me. I will quote seperately.
